Deburring machine add-on
U Turn Automatic Workpiece Return Conveyor
Return processed sheet metal parts to the loading side automatically. The U-shaped conveyor supports one-operator workflows and makes repeat passes easier without carrying parts around the machine.
Return system engineering
Machine Features
The U Turn conveyor is engineered with the deburring machine, workpiece range and available floor space.
Synchronized conveyor speed
Return speed is adjusted to match the through-feed deburring process.
One-side operation
The operator loads and receives parts from the same working position.
Configurable return direction
Left-hand or right-hand flow is selected from the factory layout.
Repeat-pass support
Returned parts can be re-fed when another side or process setting is required.
How it works
Keep parts moving without a second operator

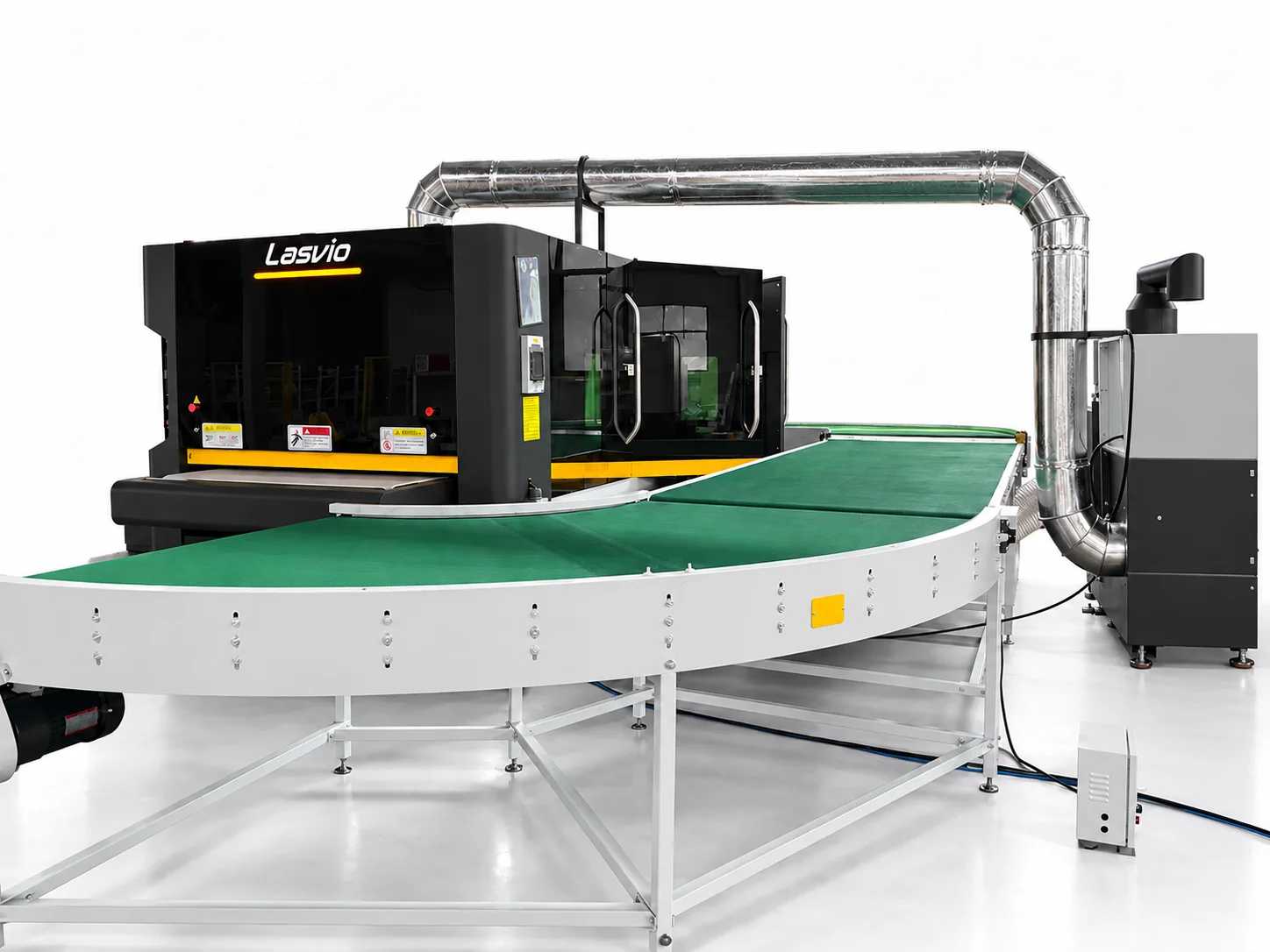

After a part exits the deburring machine, the return conveyor guides it around the side and back to the original loading position. The operator can unload a finished part or feed it through again for a second process pass.
Technical planning
U Turn conveyor specifications
The return system is configured with the deburring machine and the customer’s part mix. Values that depend on part weight and geometry are confirmed during project review.
| Item | Lasvio configuration |
|---|---|
| Compatible working widths | 800 / 1000 / 1300 / 1600 mm (31.5 / 39.4 / 51.2 / 63.0 in) |
| Conveyor belt speed | Adjustable and synchronized with machine feed; typical machine range 1–5 m/min |
| Maximum conveyor belt load | Confirmed from maximum part weight and loading pattern |
| Maximum product size | Confirmed from part length, width, shape and turning stability |
| Power supply | 400 V, 50/60 Hz; voltage can be customized |
| Return direction | Left-hand or right-hand layout, confirmed with floor plan |
Project checklist
What we need to engineer the return path
Part range
Minimum and maximum length, width, thickness and weight, plus representative photos.
Process route
Single pass, repeated pass, one-side treatment or planned two-side processing.
Floor plan
Available space, preferred return side, extraction routing and operator position.
FAQ
U Turn conveyor questions
Can the return conveyor be added to every machine width?
It can be planned around the 800, 1000, 1300 and 1600 mm machine families. Final compatibility depends on part size, weight and the available floor area.
Does the conveyor replace an operator?
It can allow one operator to load and receive parts from the same side. Actual staffing depends on part weight, cycle time and handling requirements.
Can it return parts for another processing pass?
Yes. The operator can receive the returned part and re-feed it when the process requires a second pass or another machine setting.
Layout review
Plan a U Turn system around your machine and parts
Send the machine model, part range and available floor plan. We will confirm conveyor direction, speed matching and load requirements.
