Complete Finishing — BRP, BBRP & BRBP
Combine burr removal, multi-directional edge rounding and linear surface finishing in one automatic through-feed process.
Common Processing Challenges
Inconsistent Surface Finishing Affects Product Quality
After cutting, grinding, or welding processes, metal surfaces often contain scratches, uneven textures, oxidation marks, or inconsistent brushing patterns that reduce final product appearance and finishing consistency.
Common production challenges include:
Visible grinding marks
Uneven surface texture
Inconsistent brushed finish
Surface scratches after handling
Labor-intensive manual polishing
Unstable finishing quality between batches
For fabrication shops producing visible metal components, consistent surface finishing is critical for both appearance and downstream processing quality.
What It’s Built For
Designed for Surface Finishing & Decorative Brushing
This solution is developed for fabrication shops requiring stable surface treatment, decorative brushing, and finishing consistency on stainless steel and sheet metal components.
Typical Applications
- Decorative stainless steel panels
- Elevator panels
- Kitchen equipment
- Electrical enclosures
- Architectural metalwork
- Precision sheet metal fabrication
- Stainless steel
- Carbon steel
- Aluminum
- Galvanized steel
- Copper

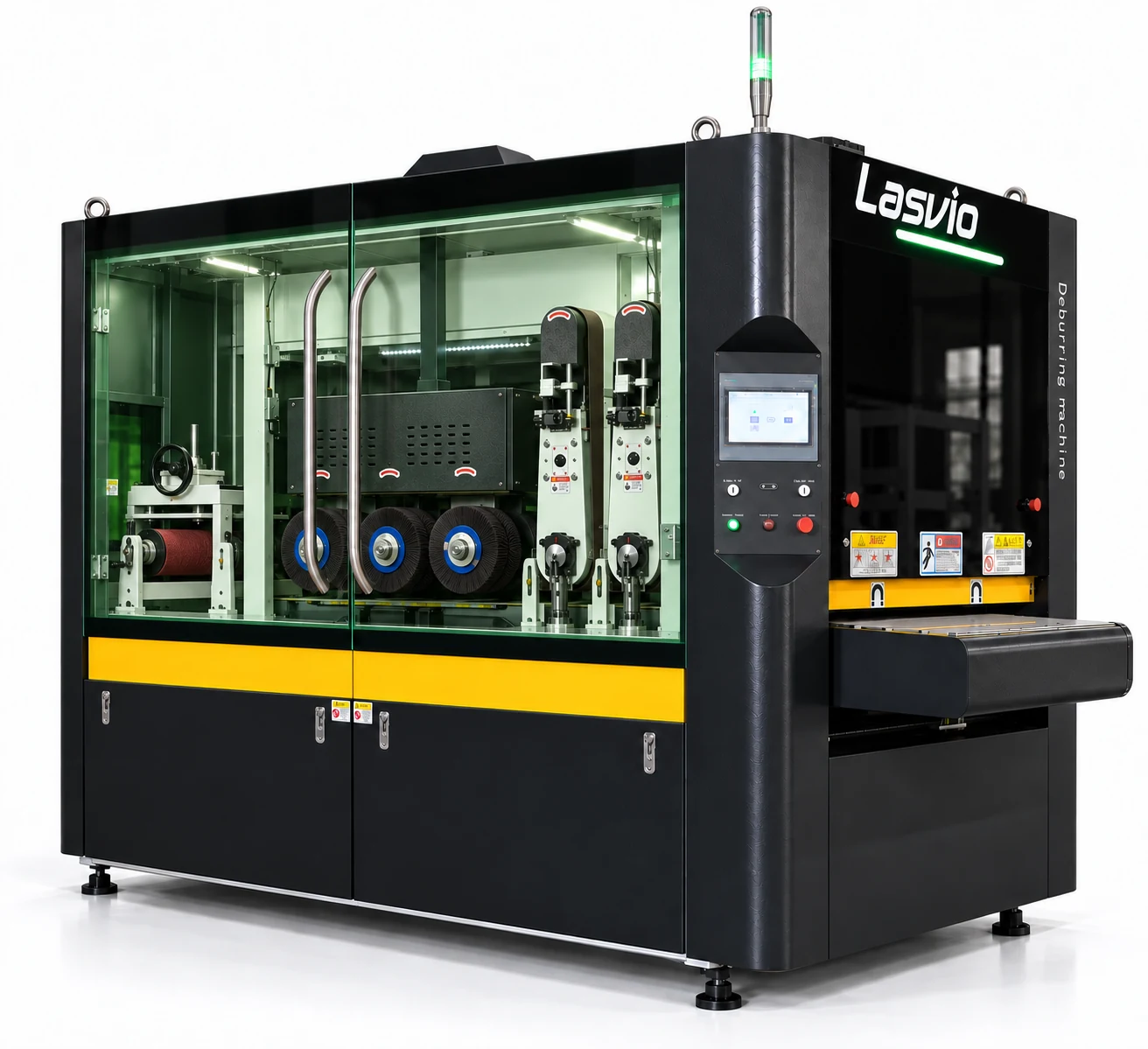

Parameters
| Model | MB-800BBW / MB-1000BBW | MB-1000BRB / MB-1300BRB |
|---|---|---|
| Working Width | 800mm, 1000mm, 1300mm & 1600mm | 800mm, 1000mm, 1300mm & 1600mm |
| Drive System | High-precision servo motor + closed-loop feedback | |
| Safety System | Active safety + passive safety | |
| Processing Thickness | 1-80mm | |
| Feed Speed | 1-5m/min | |
| Sanding Belt Speed | 5-13m/s | |
| Roller Brush Speed | 5-13m/s | 9-24r/s |
| Revolving Speed | – | 8-21r/min |
| Rated Voltage AC | 380V/50Hz/Customized | |
| Air Pressure | 0.5-0.8Mpa | |
Complete finishing configurations
Choose BRP, BBRP or BRBP by burr level and finishing sequence
Every configuration combines abrasive-belt deburring, universal-brush edge rounding and a surface finishing roller. The belt count and position determine removal capacity and when surface refinement occurs.

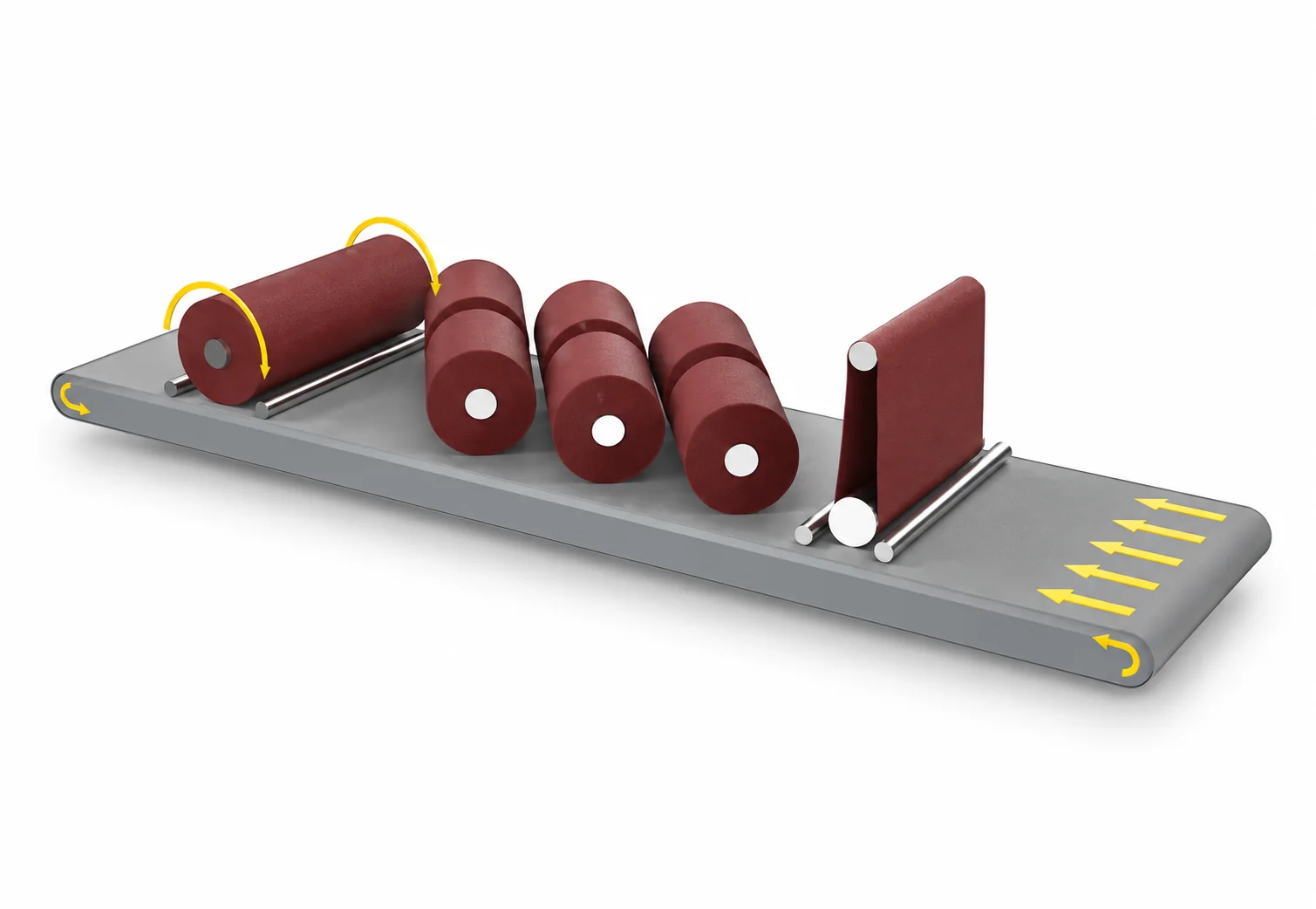

BRP
Belt + rotary brush + finishing roller
Efficient three-stage processing for routine deburring, edge rounding and linear surface finishing.

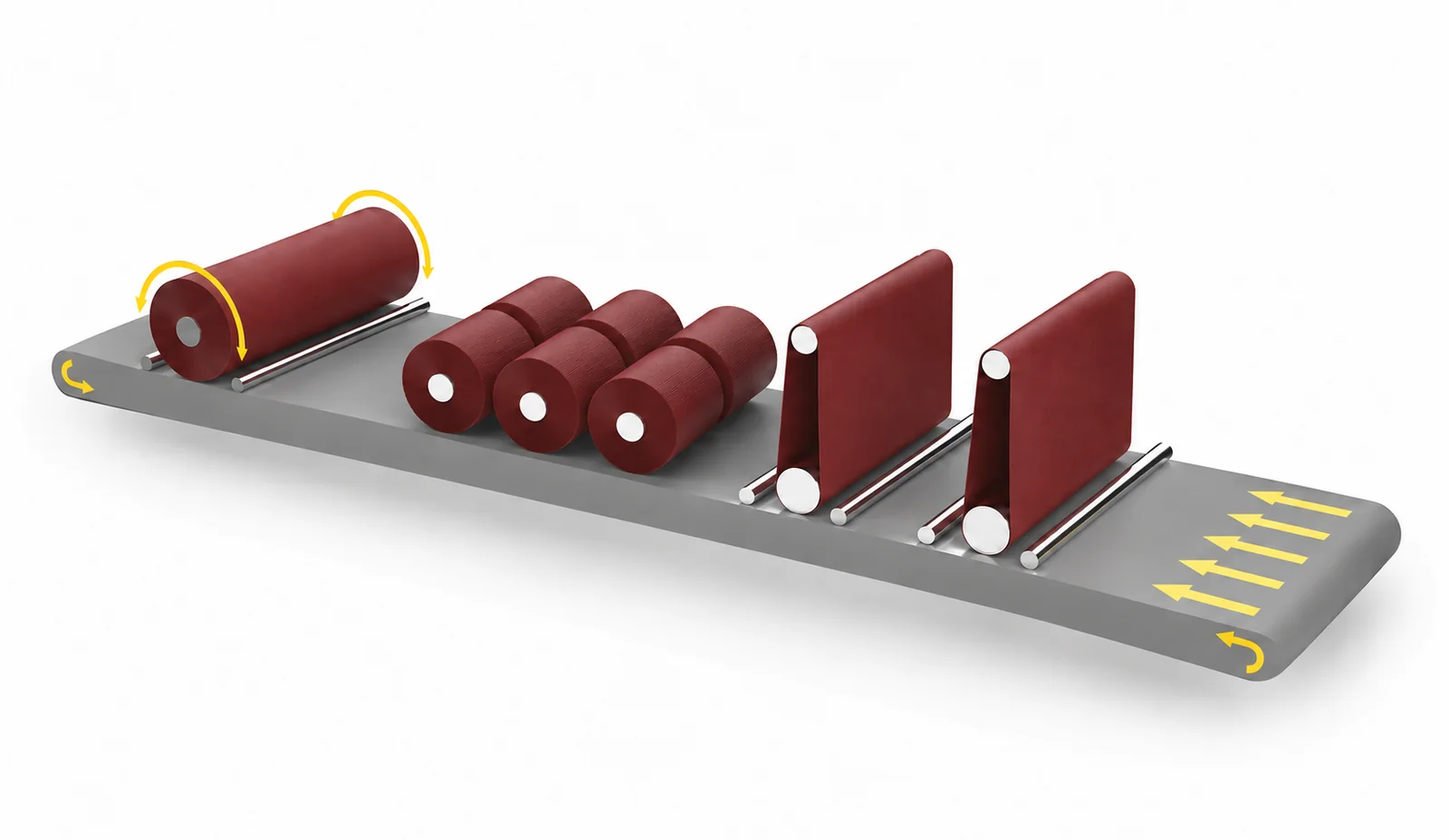

BBRP
Two belts + rotary brush + finishing roller
More deburring and cleaning capacity before the edge-rounding and surface-finishing stages.

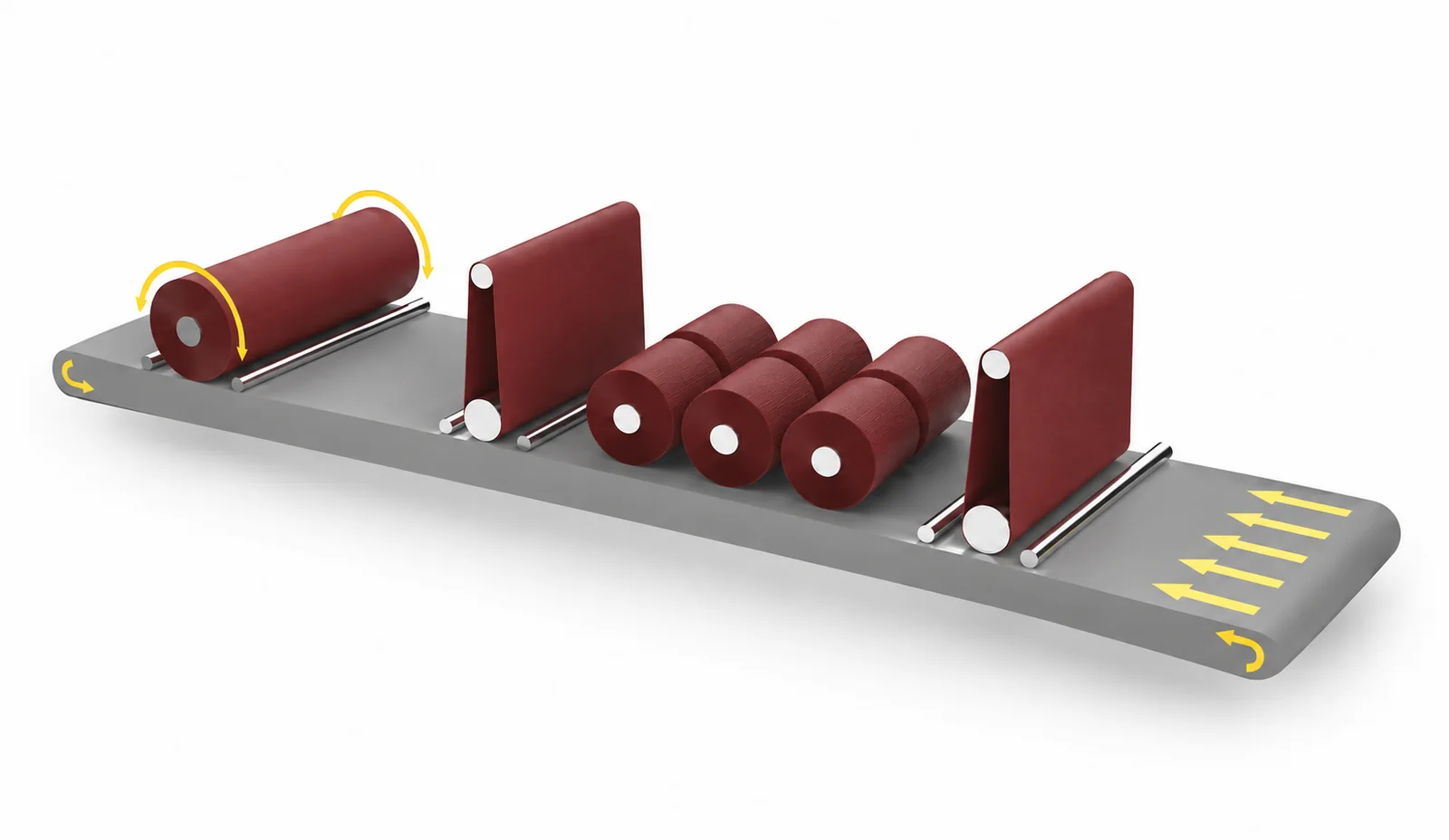

BRBP
Belt + brush + belt + finishing roller
Refines the surface after edge rounding before applying the final directional finish.
Machine Features
BBRP Structure
The four-station BBRP configuration combines two abrasive belts, one universal rotary brush unit and a surface finishing roller for integrated processing.
Rigid Industrial Machine Structure
Heavy-duty welded frame construction designed for continuous industrial operation and stable processing performance.
Closed-Loop Servo Control
The 0.01mm closed-loop system continuously adjusts belt tension during operation. Ensures stable conveyor synchronization and consistent finishing quality.
Industrial Electrical System
Reliable electrical architecture designed for long-term operation, easy maintenance, and stable performance in fabrication environments.
Integrated Safety Protection
Equipped with safety covers, muti-emergency stop systems, gas pressure alarm, doors opeaning alarm, overthick alarm, and operator protection features for safer daily operation.
Processing Capability
Uniform Surface Finishing with Improved Visual Consistency
The system combines abrasive belt processing and industrial brushing technology to create cleaner surfaces and controlled finishing textures for industrial and decorative applications.
- Surface finishing
- Decorative brushing
- Scratch reduction
- Surface cleaning
- Texture consistency improvement
- Improve visual appearance
- Reduce manual polishing workload
- Achieve more consistent brushed patterns
- Improve finishing efficiency
- Create cleaner and more uniform surfaces
Processing Flow: Applications
Welding Related
Removes spatter, overflow beads, and heat-affected zone edges in one pass. Rounded edges ready for immediate coating or assembly.
Laser Cut Parts
This process refines laser-cut edges and removes the heat-affected zone, delivering a consistent finish ready for further processing or assembly.
Metal & Fabrication
Handles stamp and shear burrs on medium-to-large panel sizes. Fast, consistent, ready for powder coating or plating.
Before & After Processing
After processing, metal parts achieve:
Reduced visible scratches
More uniform brushing patterns
Improved decorative appearance
Cleaner surface consistency
Better finishing quality for downstream applications
FAQ
What is the difference between surface finishing and deburring?
Can brushing improve stainless steel appearance?
Is surface finishing suitable for decorative metal applications?
Can the process reduce manual polishing work?
