SHEET METAL DEBURRING & EDGE ROUNDING MACHINE
Deburring & Edge Rounding Machines for Laser-Cut Parts
Remove burrs and create smooth, consistent edge radii on laser-cut sheet metal parts in one automatic pass. BR, HBR, BBR and BRB configurations match different burr levels, edge rounding requirements and production priorities.
Common Processing Challenges
Laser-cut sheet metal parts often look clean from above, but small burrs, sharp edges, and inconsistent edge radii can still slow down welding, coating, and assembly. Combining automatic deburring with edge rounding makes this finishing step repeatable without relying on manual grinding.
Cutting burrs after laser cutting
Sharp edges and handling risk
Inconsistent edge radius
Poor coating adhesion
Manual deburring bottlenecks
Quality variation between operators
For manufacturers that need burr removal and edge rounding in one process, BR, HBR, BBR and BRB configurations create a more stable finishing workflow for laser-cut, punched and sheared parts.
What It’s Built For
Built for burr removal and consistent edge rounding on sheet metal parts. BR, HBR, BBR and BRB configurations combine abrasive belt deburring with universal rotary brushes for multi-directional contact on external edges, internal contours and openings.
Punched parts with internal holes
Sheared panels
Powder coating preparation
Precision fabrication
Stainless steel
Aluminum
Galvanized steel
Copper alloys
Parameters
| Configurations | BR / HBR / BBR / BRB |
| Working Widths | 800mm, 1000mm, 1300mm & 1600mm |
| Main Process | Deburring and edge rounding, precision grinding & thickness calibration |
| Typical Parts | Laser-cut, thermal-cut, punched and sheared sheet metal parts |
| Processing Thickness | 0.5mm-80mm |
| Feeding Speed | 1m – 5m/min |
| Roller Brush Speed | 9r – 24r/s |
| Revolving Speed | 9r – 24r/s |
| Power Supply | 380V AC 50Hz/60Hz Support Customized |
| Air Pressure Required | 0.5 -0.8 MPa |
| Service | CE Certified · Global Service |
Deburring and edge rounding configurations
Choose BR, HBR, BBR or BRB by burr level and edge rounding sequence
All four configurations combine abrasive-belt deburring with a universal rotary brush system for multi-directional edge rounding. Select the station sequence according to burr severity, required edge radius, surface finish and production volume.

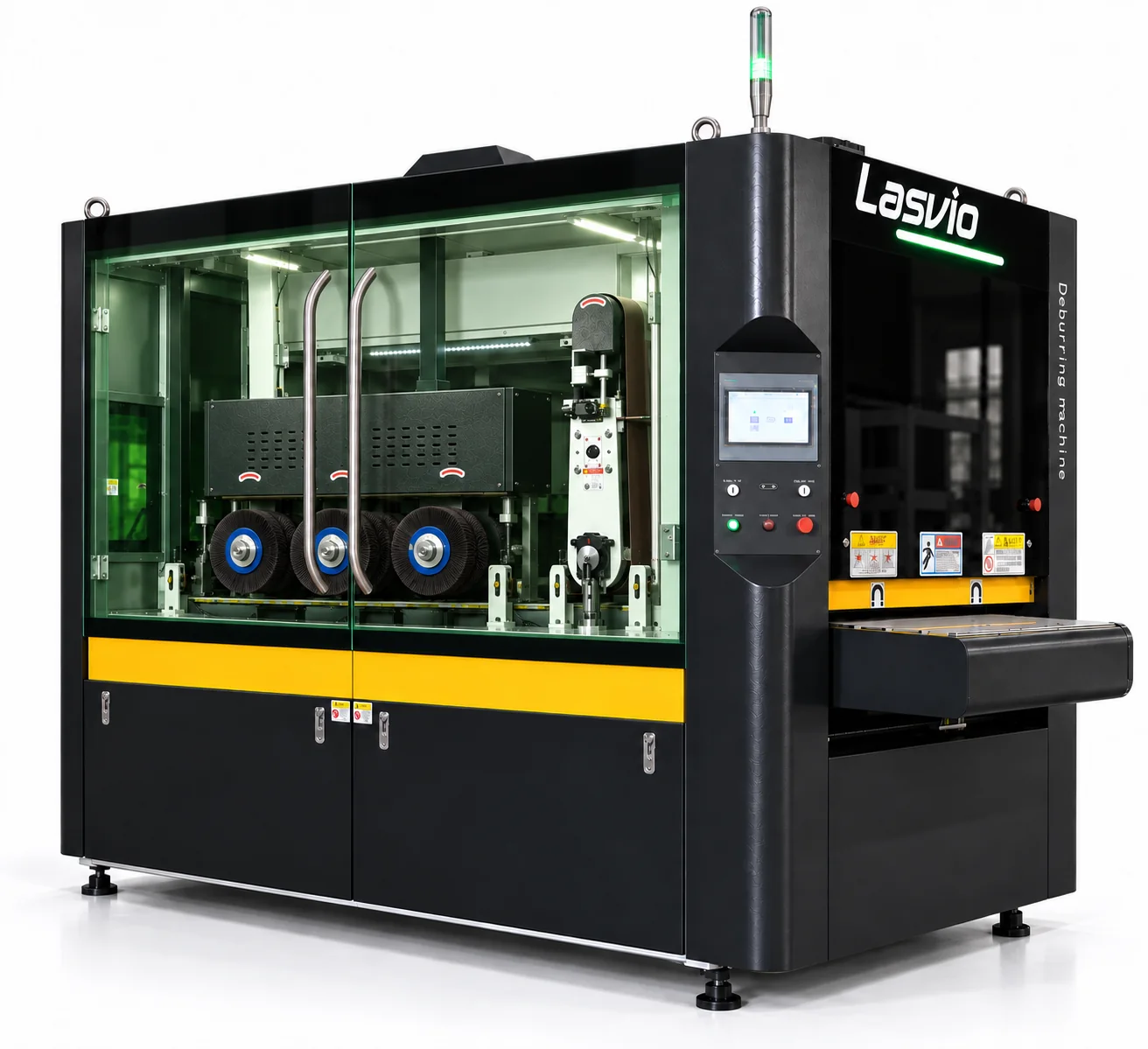

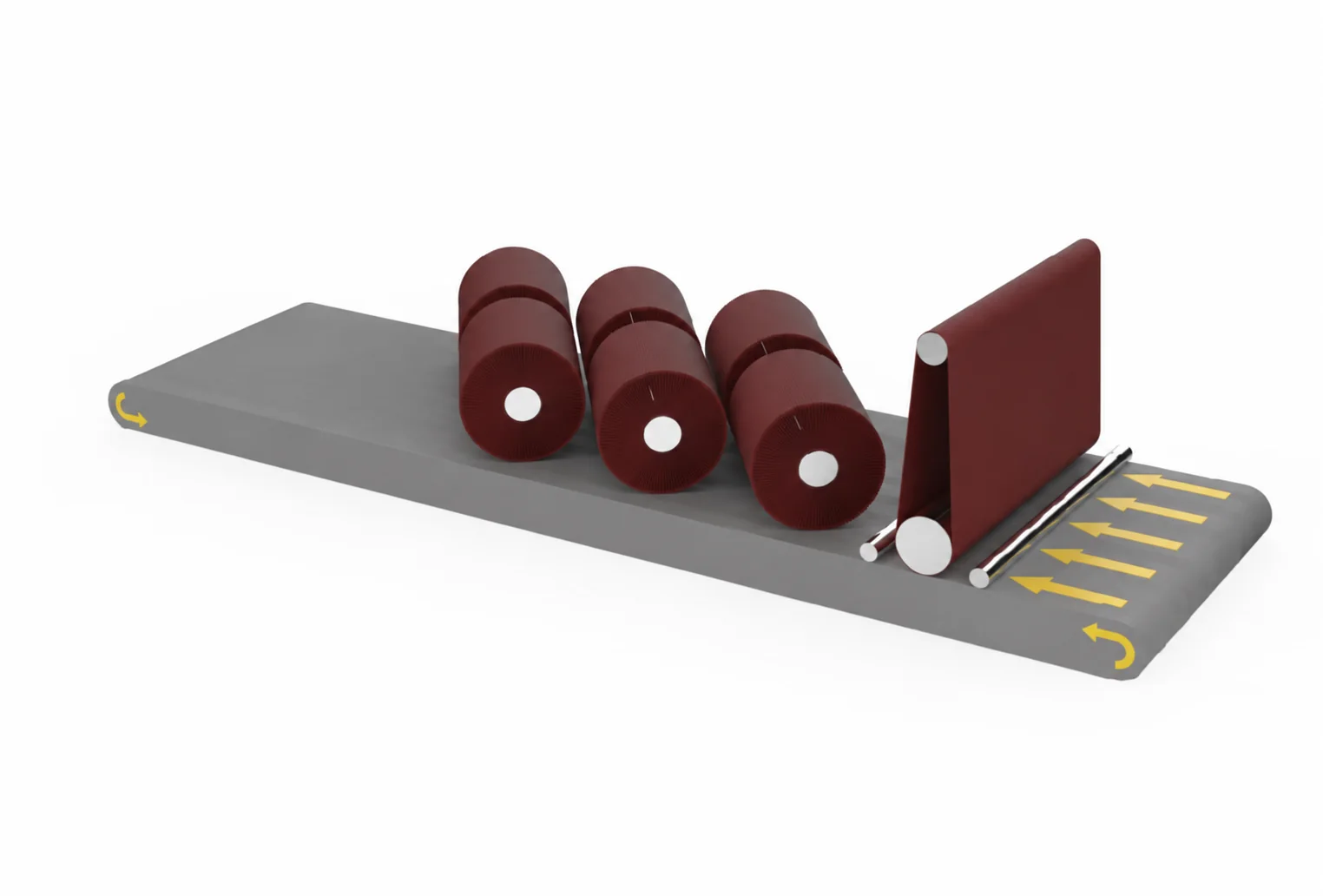

BR
Belt + rotary brush
For common laser-cut and punched parts that need burr removal followed by uniform edge rounding.
- Balanced entry configuration
- Lower consumable count
- 800mm, 1000mm, 1300mm & 1600mm widths
HBR
Hammer head + belt + rotary brush
Breaks slag and dross first, then deburrs and rounds edges in one pass
- Built for plasma & flame cut parts
- Coating-ready edges in the same pass
- 800mm, 1000mm, 1300mm & 1600mm widths
BBR
Belt + belt + rotary brush
Two belt stations improve burr removal and surface consistency before the final edge-rounding stage.
- Higher deburring capacity
- Stable results for batch production
- 800mm, 1000mm, 1300mm & 1600mm widths

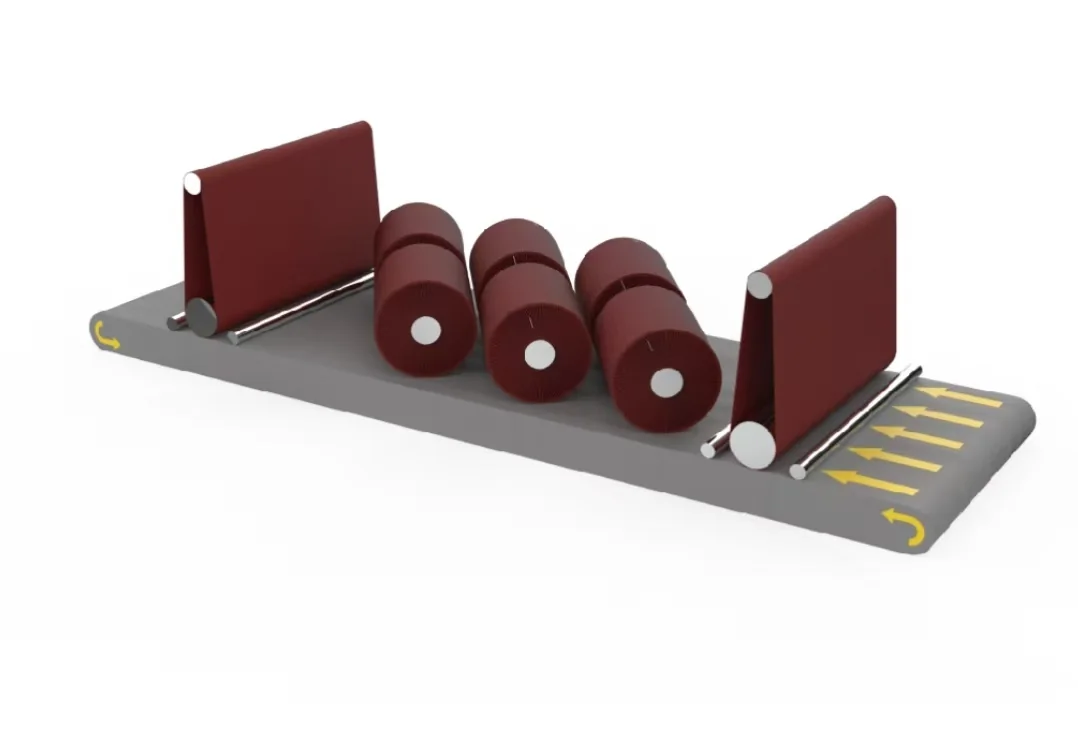

BRB
Belt + rotary brush + belt
A final belt station follows edge rounding when the process also requires additional surface refinement.
- Deburring before edge rounding
- Final belt surface refinement
- 800mm, 1000mm, 1300mm & 1600mm widths
Machine Features
BR / HBR / BBR / BRB Structure
Rigid Industrial Machine Structure
Closed-Loop Servo Control
Industrial Electrical System
Integrated Safety Protection
Processing Capability
Multi-directional edge rounding
Internal contour rounding
Coating preparation
Surface refinement
More uniform edge radius
Improved handling safety
Better coating preparation
Less manual grinding variation
Processing Flow: Applications
Powder Coating Preparation
Laser Cut Sheet Metal Parts
Precision Fabrication
Before & After Processing
Cleaner Edges. Reduced Secondary Grinding.
- Cutting burrs removed
- Sharper edges rounded
- Improved handling safety
- More consistent coating preparation
- Less manual grinding variation
FAQ
Which model is best for normal laser-cut burrs?
BR is a practical starting point for many laser-cut sheet metal parts. BBR adds a second abrasive belt for higher removal capacity, while BRB places a finishing belt after the rotary brush. HBR adds a hammer deslagging head ahead of the belt, for parts that carry slag or heavy dross as well as burrs.
Can the machine process stainless steel and aluminum?
Yes. Abrasives and parameters are selected according to material. Aluminum applications require a properly specified wet dust collection system.
Can one machine handle different part thicknesses?
Yes, within the selected machine range. Send representative parts so we can confirm holding stability, abrasive access and process settings.
How do I confirm BR, HBR, BBR or BRB before buying?
The safest method is to send representative samples for testing. We can then recommend the station sequence, abrasive type, working width and extraction arrangement.
Inquiry Section
Not Sure Which Configuration Fits Your Process?
Tell us your material, thickness, cutting method, burr condition, target edge radius and production volume. Our technical team will recommend the right BR, HBR, BBR or BRB setup and arrange a sample test on your actual parts.
